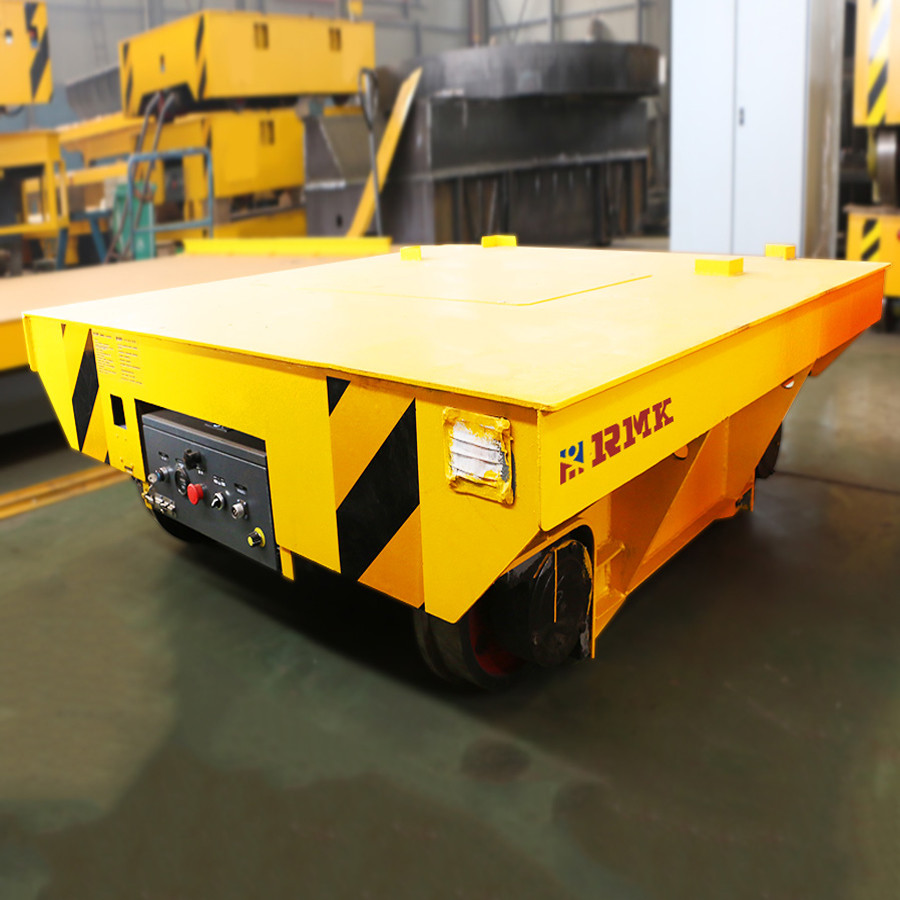

Customized DC Motor 20 Tons Steel Billet Industrial Railway Transfer Car
Rail Transfer Cart For Heavy Steel Plate Transport Is Widely Use In Steel Plant To Transfer Steel Plate Or Steel Structure, Steel Coil Etc.. The Rail Transfer Cart Is Controlled By Wireless Remote Control And Hand Pendant. There Are Some Power Supply Modes For Clients To Choose, Such As Battery Power, Cable Reel Or Cable Drum Power, Low Voltage Rail Power, Busbar Power And Diesel Engine Power. The Rail Transfer Car Is Usually Equipped With Maintenance Free Lead Acid Battery Power Supply Mode, This Kind Of Battery Powered Rail Transfer Car Has No Moving Distance Limits, So The Rail Transfer Cart Can Transport Steel Materials From Bay To Bay, Or From Production Line To Warehouse. Because There Will Be Much Dust In Steel Plant, We Will Take Dust-Proof Measures For The Battery Box, Motor And Electrical Control Box. We Can Also Give Customers Some Free Accessories For Future Use, Such As Emergency Stop Button, Alarm Light, On-Board Handle, Power Meter, Etc. We Can Design The Rail Transfer Carts's Load Capacity Is From 1-300 Ton According To Different Customers' Different Requirements.
| Technical parameters for Low-voltage track powered electric transfer carts KPD series |
| Model | KPD-6t | KPD-10t | KPD-16t | KPD-25t | KPD-40t | KPD-63t | KPD-100t | KPD-160t | KPD-200t |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 |
Countertop size
(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 |
| Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 |
Motor model / power
(Kw) | KPD (single-phase) | JDYP-11-6 | JDYP-12-6 | JDYP-21-6 | JDYP-22-6 | | |
| 2.2 | 3.5 | 5 | 7.5 | | |
| KPD (three-phase) | YZ132M1-6 | YZ132M2-6 | YZ160M1
-6 | YZ160M2-6 | YZ160L-6 | YZ160M2
-6 | YZ160L
-6 |
| 2.2 | 3.7 | 5.5 | 7.5 | 11 | 2×7.5 | 2×11 |
| Power mode | KPD | 380V reduced to 36V / 360V reduced to 36V then boosted to 380V |
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 |
| Number of wheels | 4 | 8 |
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 |
Note: 1) Other gauges, table sizes and load tonnages can be customized according to user requirements;
2) Imported and domestic industrial wireless remote-control devices are optional;
3) Optional imported wireless two-speed control;
4) Optional matching automatic parking, and alarming when encountering person 2 meters away.

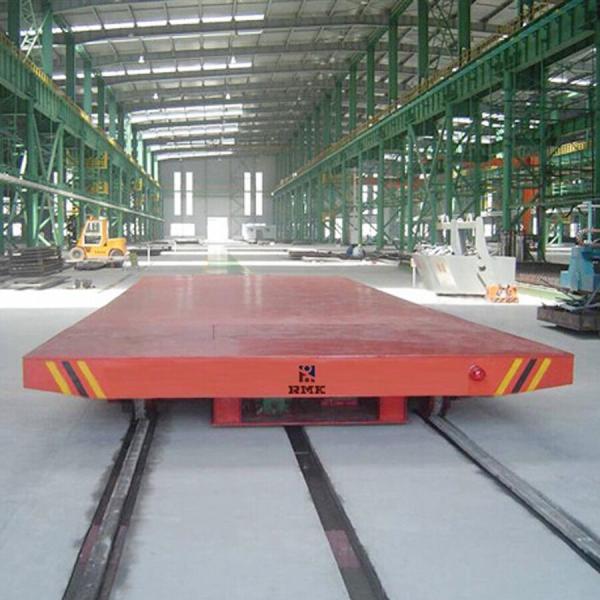

The Cross Bay Apply Electric Rail Transport Flat Car Has Two Control Methods, Wireless Remote Control Of The Rail Vehicle And Wired Handle Operation. The Rail Transfer Vehicle Is Equipped With Sound And Light Warning Lights, Which Can Be Stopped When Encountering Obstacles.
Rail Transport Vehicles Are Powered By Batteries And Braked By Electromagnetic Brakes. And There Are Warning Signs On The Rail Transfer Carriage, Which Can Improve Safety During Operation. Customized By Our Customers, This Track Transfer Flat Car Of Our Company Is Mainly Used For Crossing In The Workshop.
